eTILE-X 10 Request a Quote

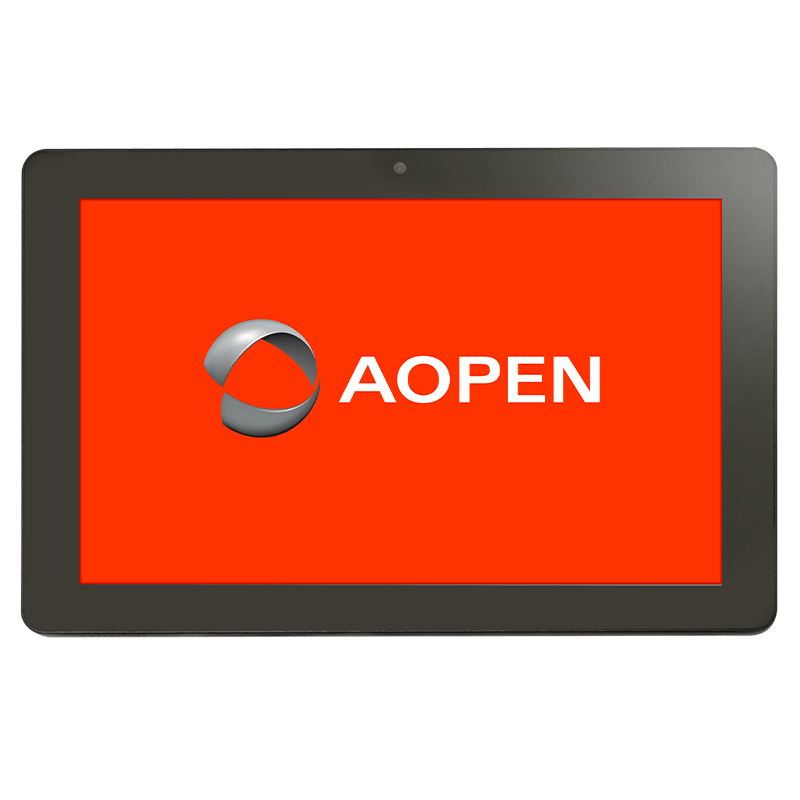

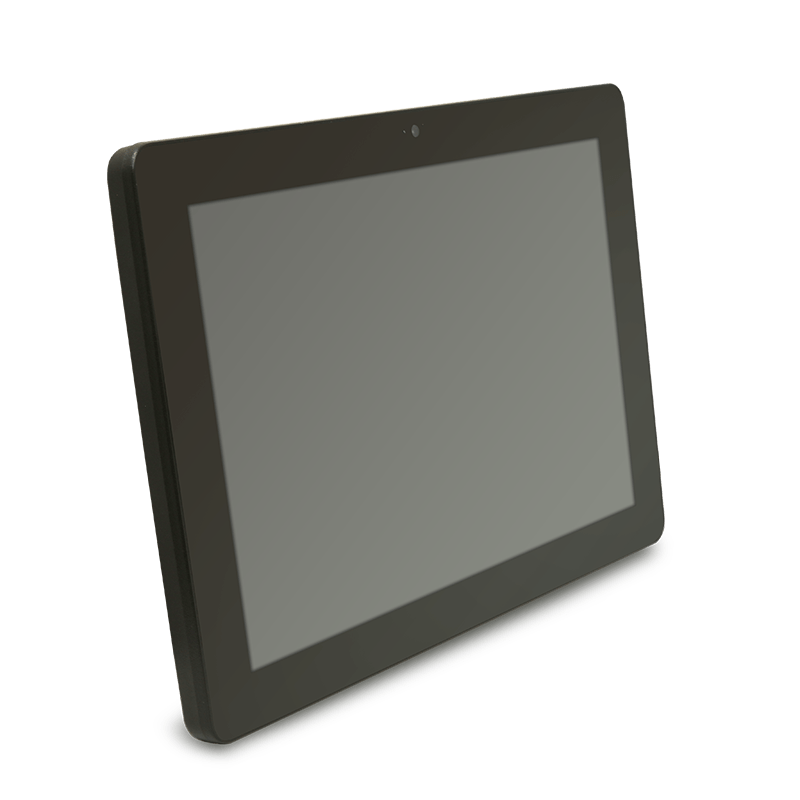

AOPEN small&slim digital kiosk is a high-resolution 10.1″ touch screen clearly displays the advertisements, availability and booking information in the workshop, and provides an interactive interface to give feedback or choose next action.

10'' Android-powered Touch High-Traffic Kiosk

Buy Now

Increase work efficiency

10.1"LCD panel, 1280*800, 16:10, 250cd/m2 with 85/85/85/85(L/R/U/D) wide-viewing angle. Slim black Metal plastic chassis, 10-Point capacitive touch and media plays of Video support MPEG-1/MPEG-2/MPEG-4/H.263,H.264/VC1/RV. Both of them are suitable for small & slim interactive signage solution.

Show the order status

Quad core cortex A17/1.6G/RK3288, 2GB RAM, 16GB Fresh storage , and Android 8.1 support as a powerful operating system.

Remoted communication

2.0 Mpixels camera, 2 x1.5w speakers and build in MiC for facial recognition and communication applications

Accurate reports on execute item

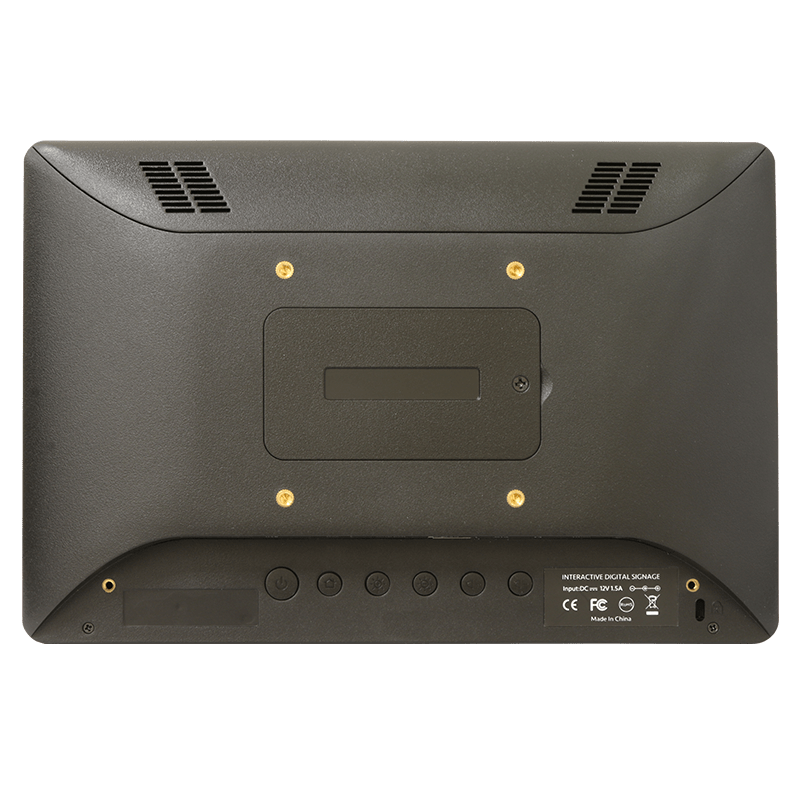

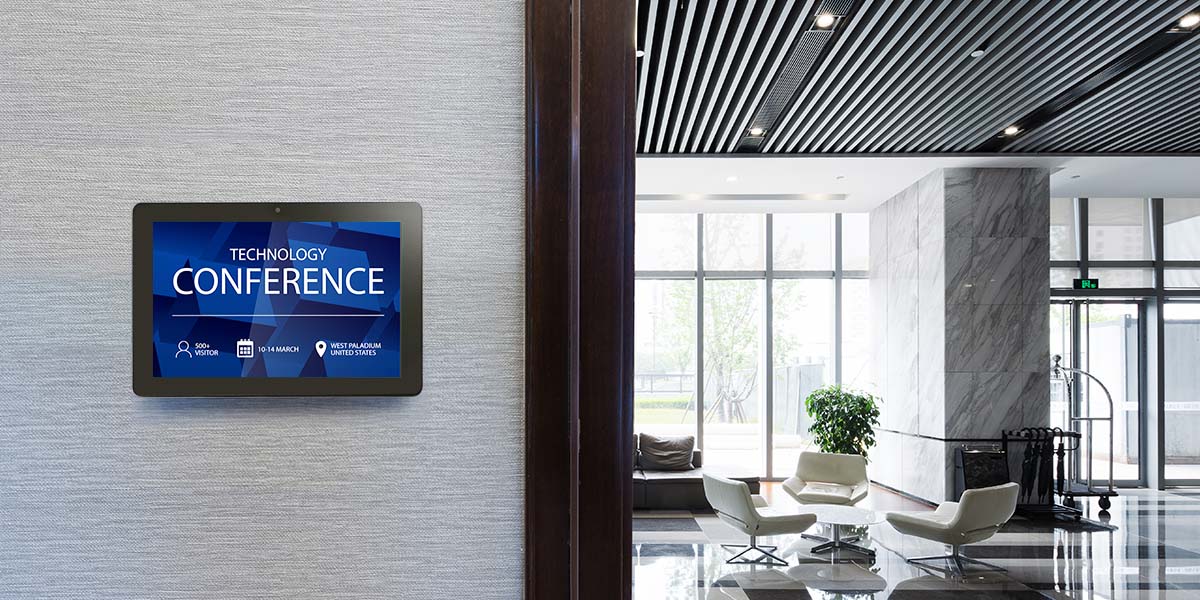

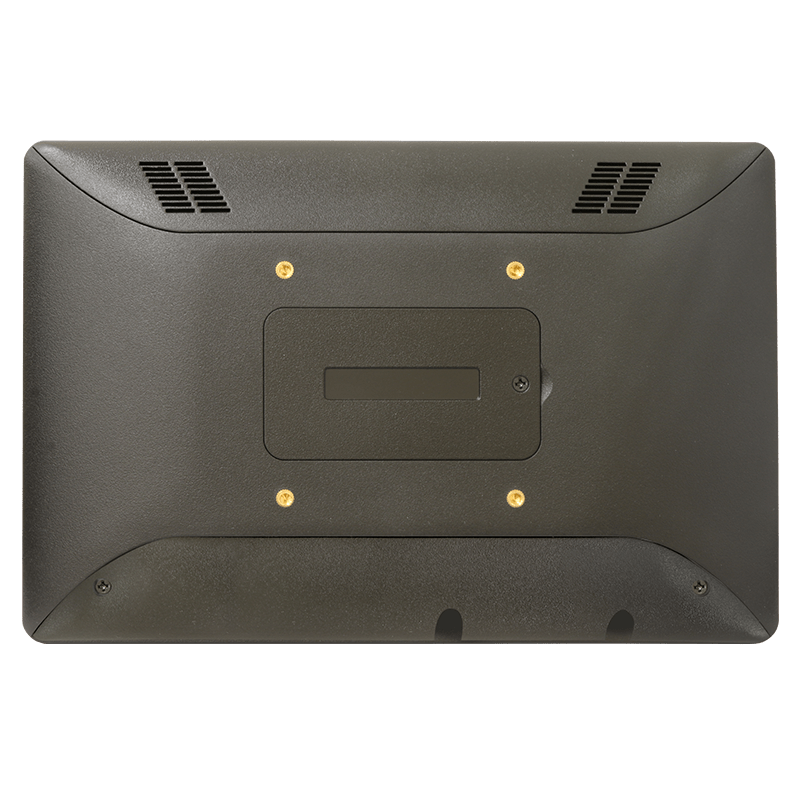

DC Adapter 12V/1.5A, Wall mounting kit 75x75, and powered by PoE 802.3AT. Let installation to be easier and simpler.

Manage and monitor in the Cloud

Ethernet 100/1000Mbits and optional WiFi 802.11b/g/n 2.4G/BT 4.0 can provide faster and more bandwidth in connection for remote management and cloud service.

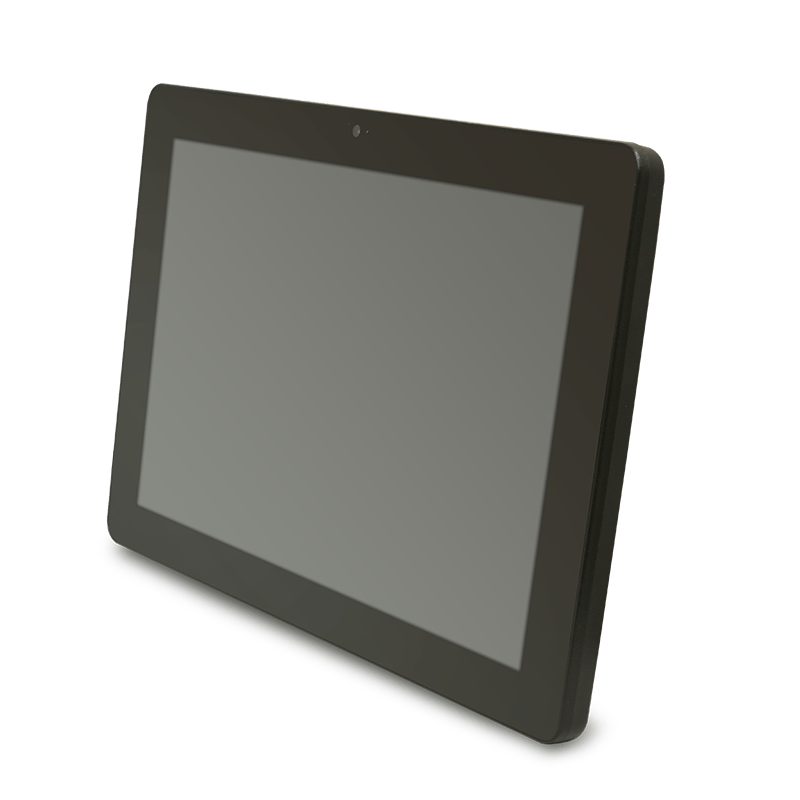

Sleek design

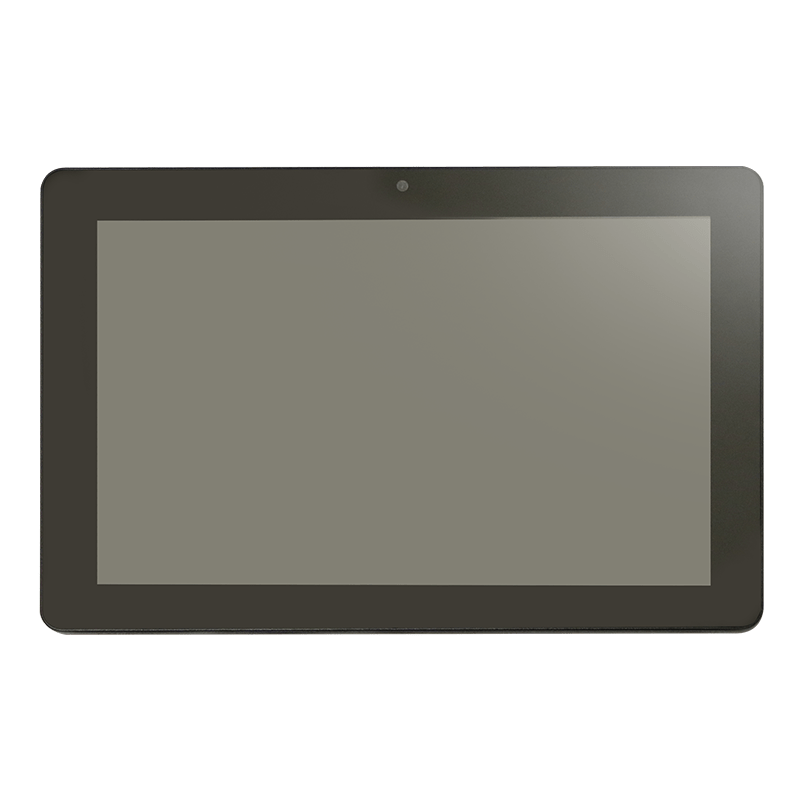

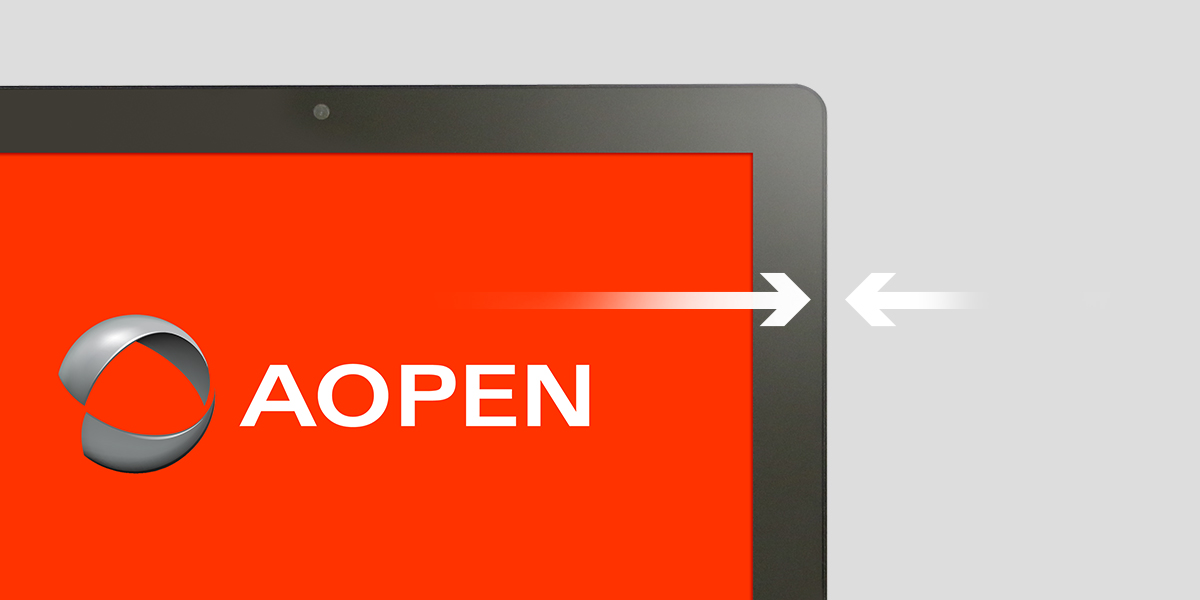

Frameless front cover design to let end user easier to touch and clean

Download

Download

Housing Material

IP Metal design

Dimension (W x H x D)

255 x 172 x 29 mm
10.04 x 6.77 x 1.14 inch

Weight

0.89kg / 1.96lbs

CPU

Rockchip RK3288 (ARM® Cortex™-A17 Quad-Core up to 1.8GHz)

Chipset

CPU Built-in

Memory

Channel: Built-in 2G
Type: DDR3

Graphics

ARM ® Mali - T760 MP4 quad-core GPU

Resolution

10.1" 1280x800 (16:10)

Maximum Brightness

250 nits

Panel Type

Vertical Alignment

View Angle (CR>10)

85/85/85/85

Response time

25ms

Contrast Ratio

800:1

Touch

PCT support 10 points

Expansion Slot

N/A

Audio

N/A

LAN

100/1000M ethernet

Storage

16M eMMC

Security

N/A

TPM

N/A

Storage Bay

N/A

Front Camera

N/A

Side Panel I/O

Power Button x 1
Brightness Up x 1
Brightness Down x 1
Volume Up x 1
Volume Down x 1
Home Button x 1

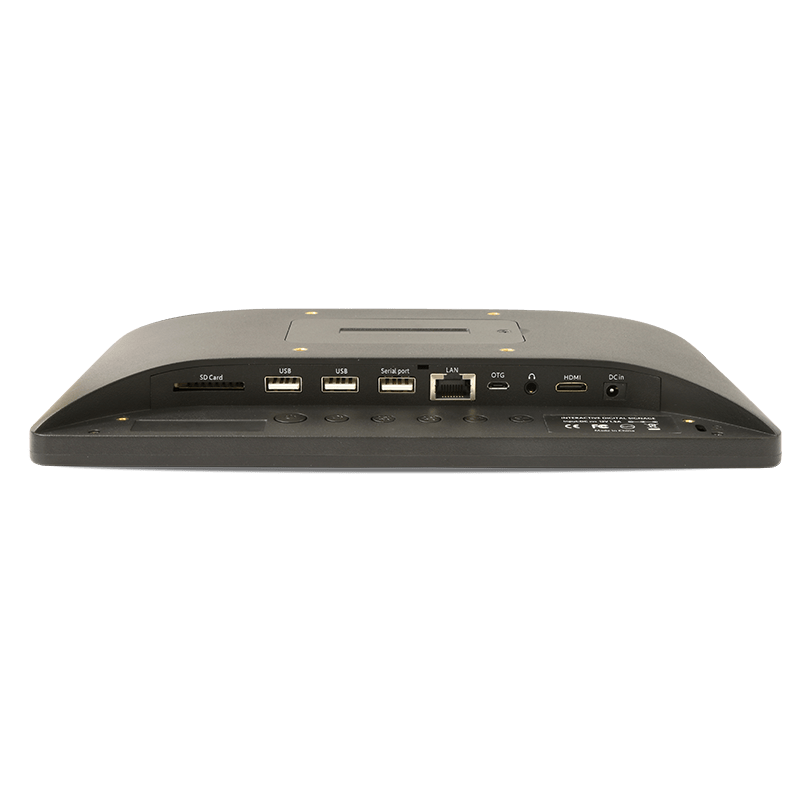

System I/O

DC Jack x 1
HDMI Out Port x 1 (mini type)
USB 2.0 Port x 2, x 1 (micro USB, OTG)
RJ45 LAN Jack x 1 (support IEEE802.3at,POE+,class 4, 25.5W)
RS232 COM Port (Tx, Rx) x 1 (Through USB type)
Audio Set Line-Out x 1 (3.5mm earphone +micphone)
Others SD card x1

Watchdog Timer

N/A

IP Grade

IP65 (front)

Adapter

12V, 1.5A, AC Adapter

Input Voltage

AC 100 ~ 240V

Warranty

1 year

MTBF

15,000hrs

Operating Temperature

0 ~ 40ºC (32 ~ 104ºF)

Storage Temperature

-20 ~ 60ºC (-4 ~ 140ºF)

Relative Humidity

90% RH (40ºC non-Condensing)

Support

Linux/Android Ubuntu 18.04 / Android 8.1
