IE-AP300 Request a Quote

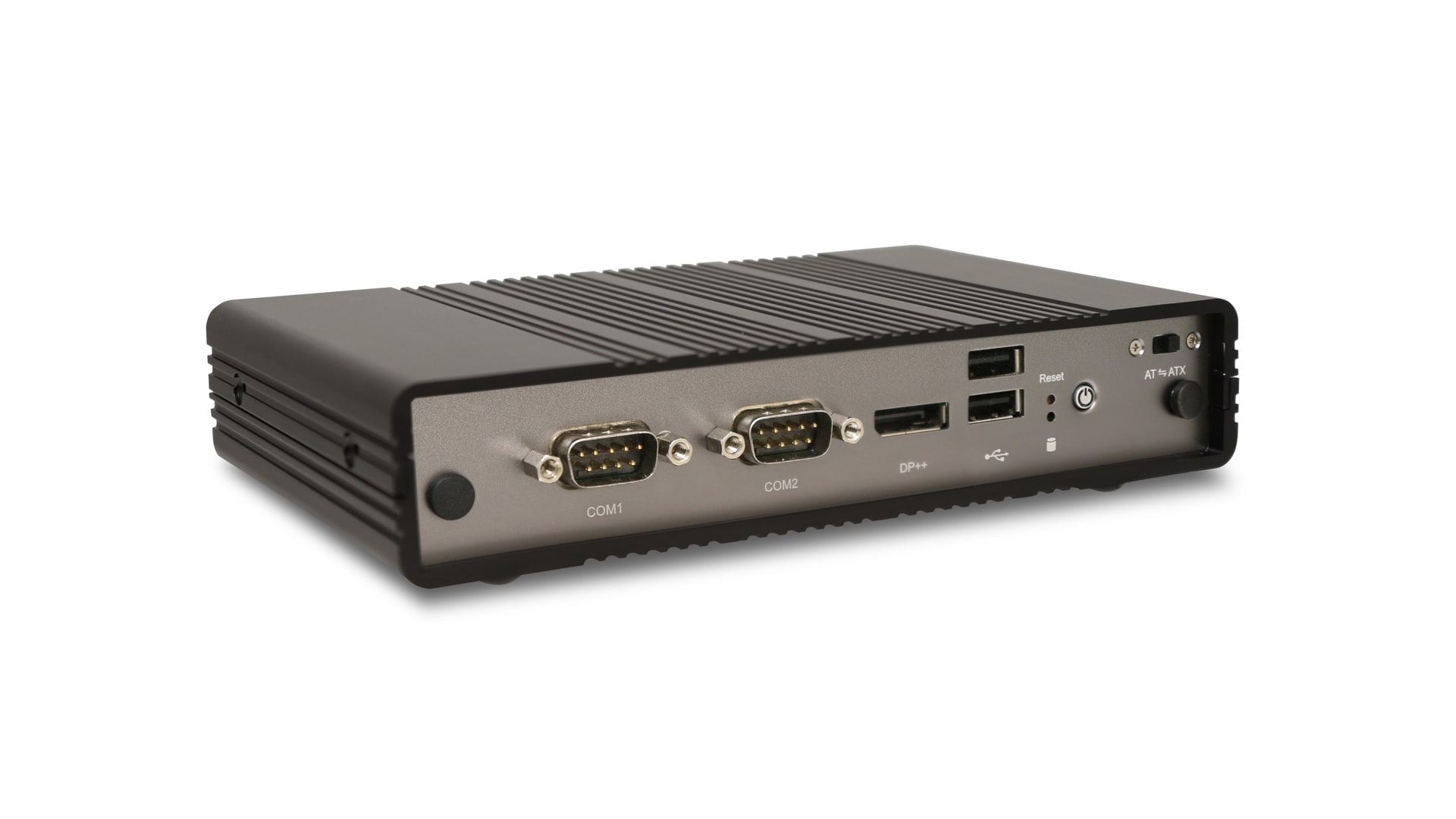

The IE-AP300 is an industrial-grade pc with a rugged and fanless design. Specifically for industrial environments, the device has multiple COM ports and a wide operating temperature range.

Industrial media player

AOPEN IPC series is with rugged design, high stability, high performance and it's easy to install. Therefore, it's very suitable for harsh environments such as industry.

Fanless design

With fanless design, the device is passively cooling and is dustproof. Therefore, it's very suitable for segements such as industry.

Wide power input voltage

The difference of AOPEN DE and IPC series is that IPC series has wider power input voltage, which is very suitable for industrial environments.

Multiple I/O ports

AOPEN IPC series is with rugged design, high stability, high performance and it's easy to install. Therefore, it's very suitable for harsh environments such as industry.

Rugged design

AOPEN IPC series is with a rugged and fanless design, which is specially designed for heavy processing in harsh environments.

wide temperature

Due to wide operating and storage temperature range, AOPEN IPC series is very sutible for industrial environments.

Download

CPU

Intel® Celeron® E3940

Dimensions

183(W) x 36(H) x 115.2(D) mm

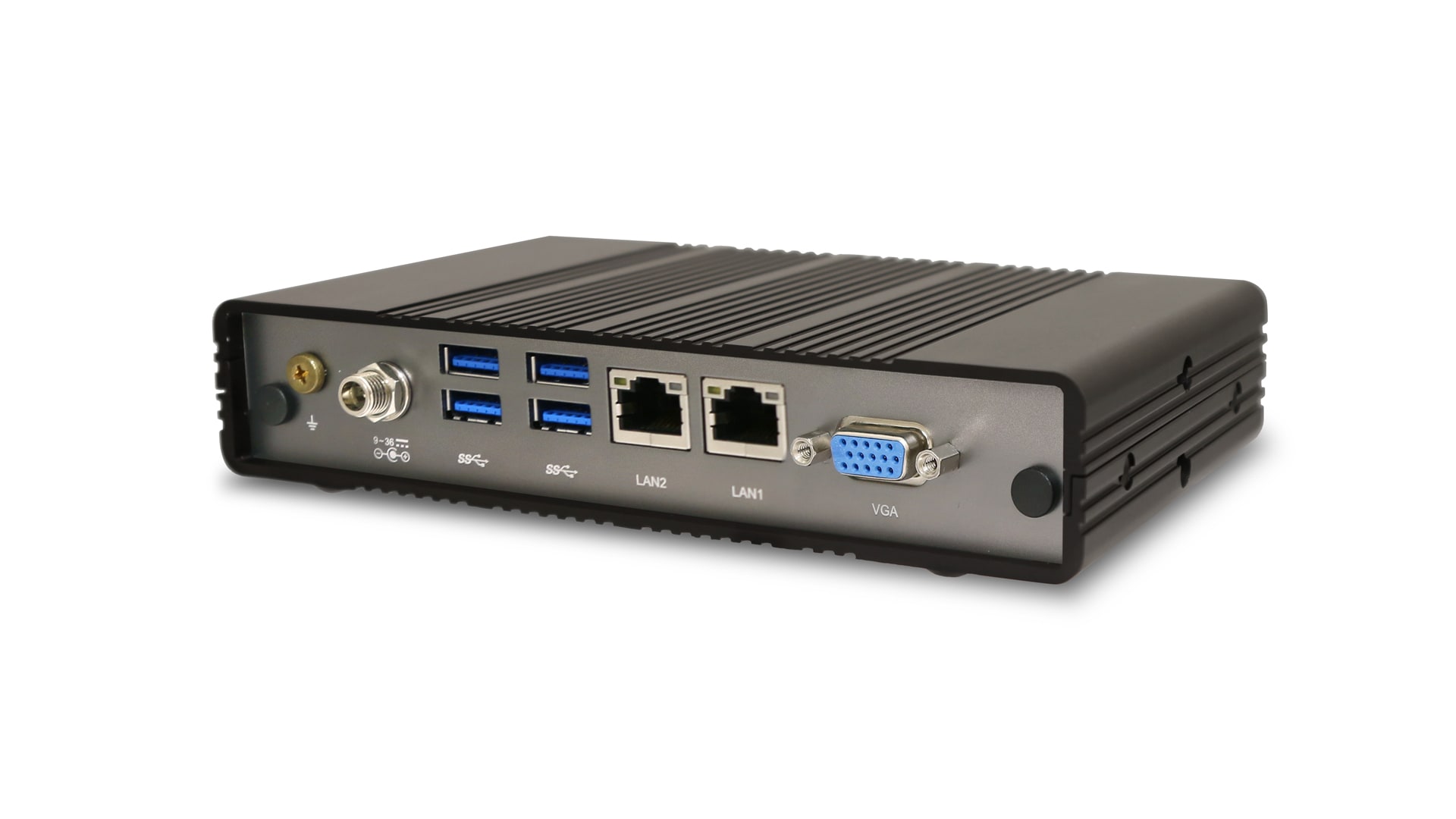

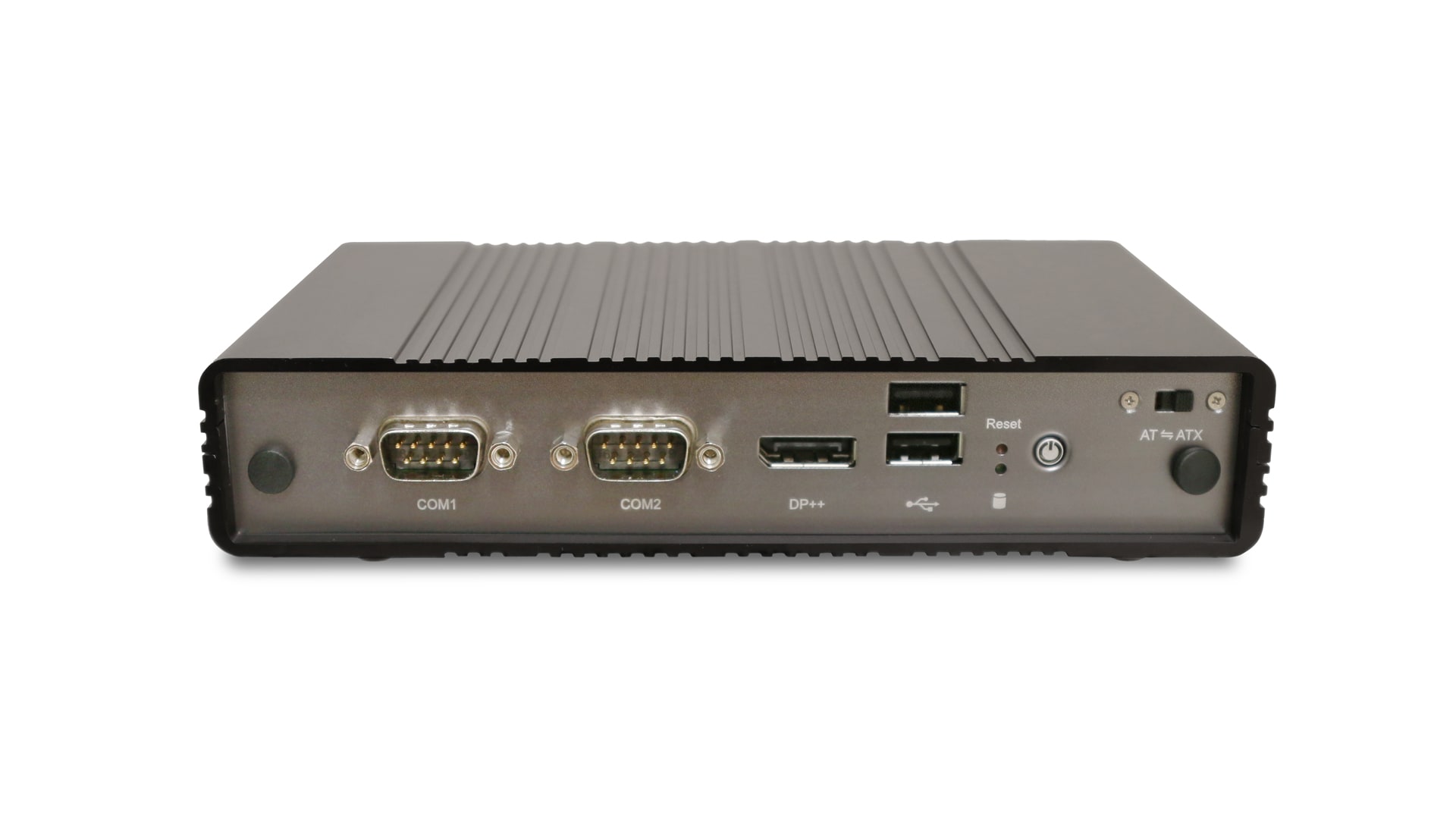

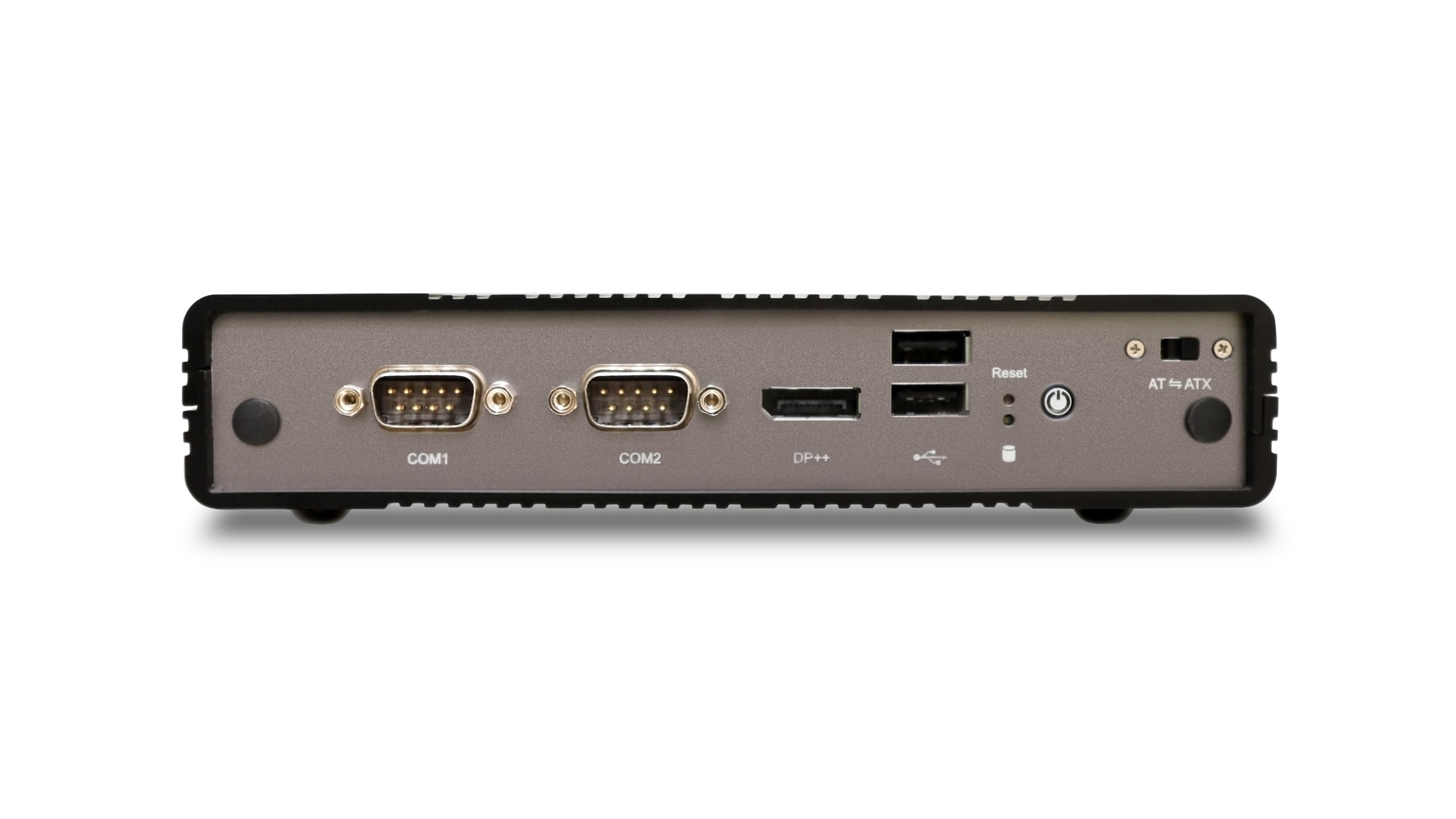

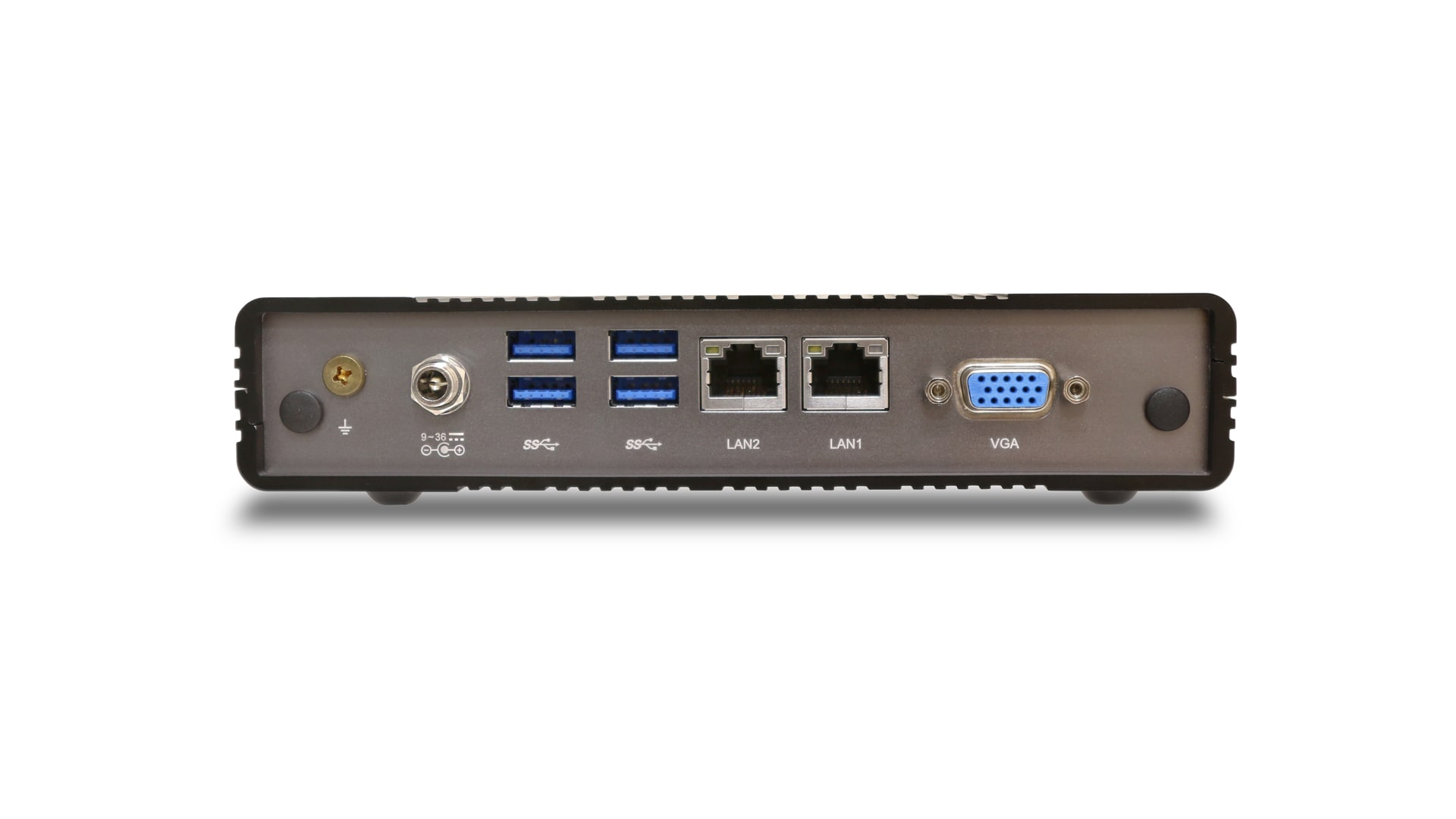

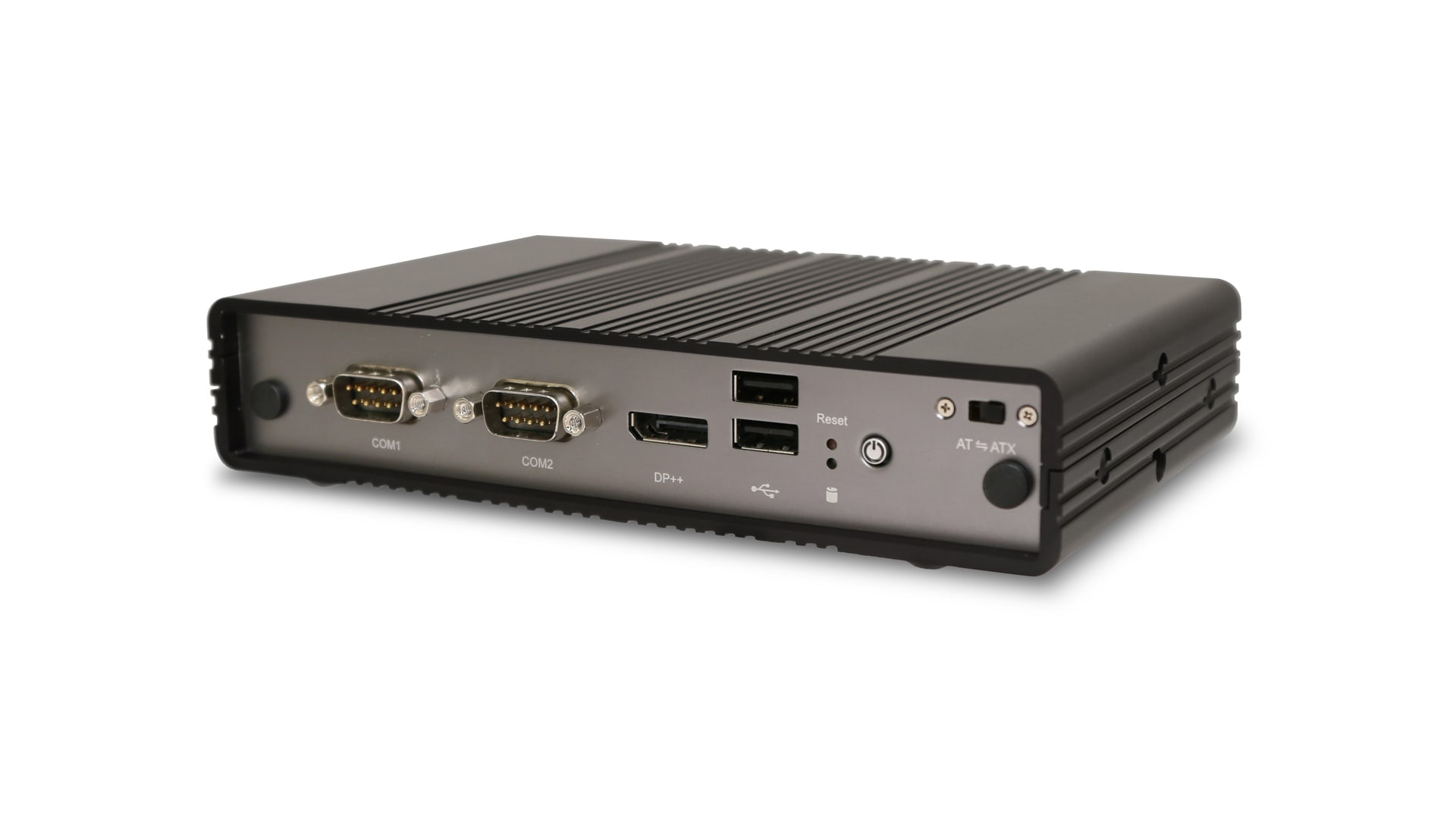

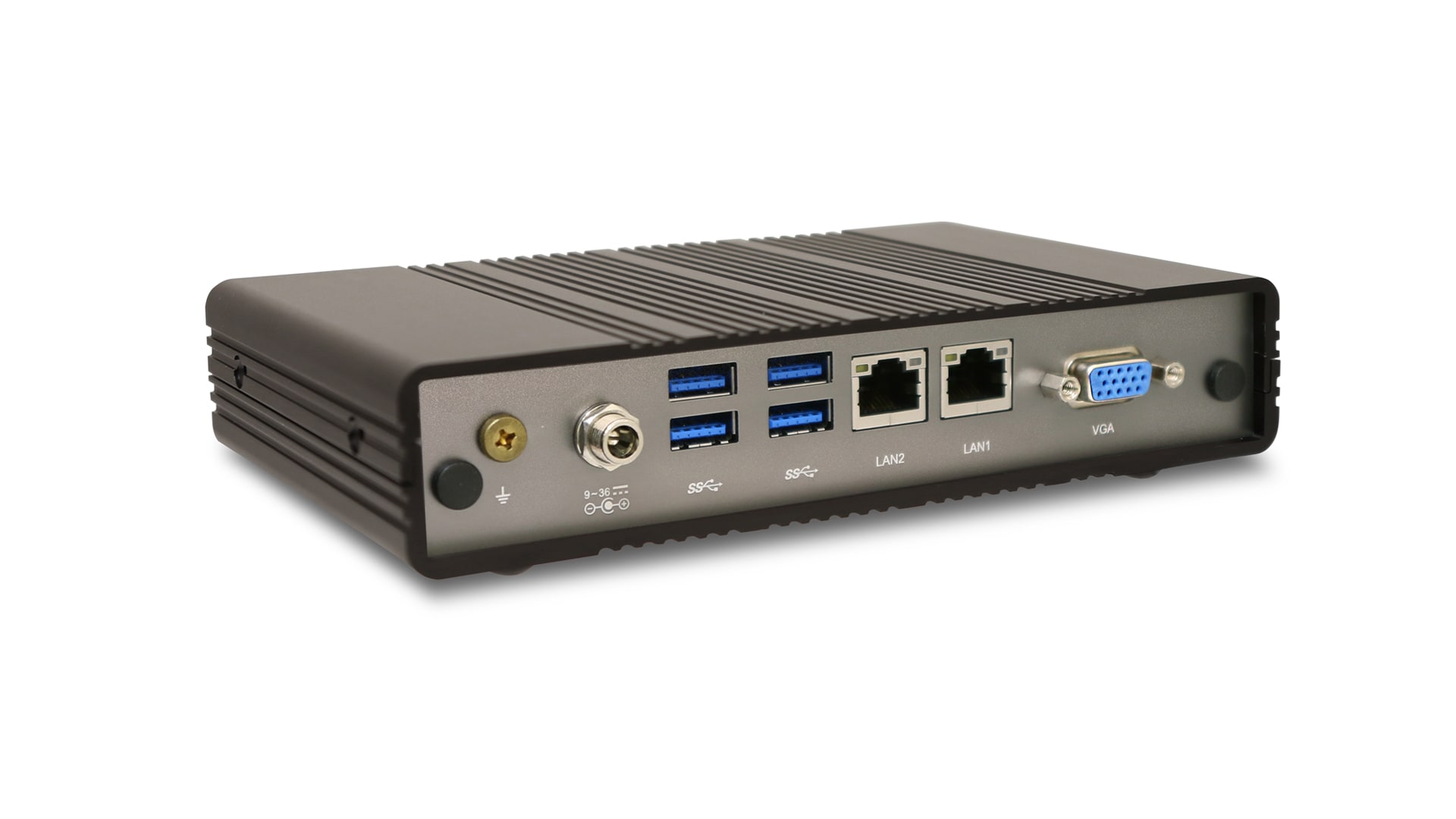

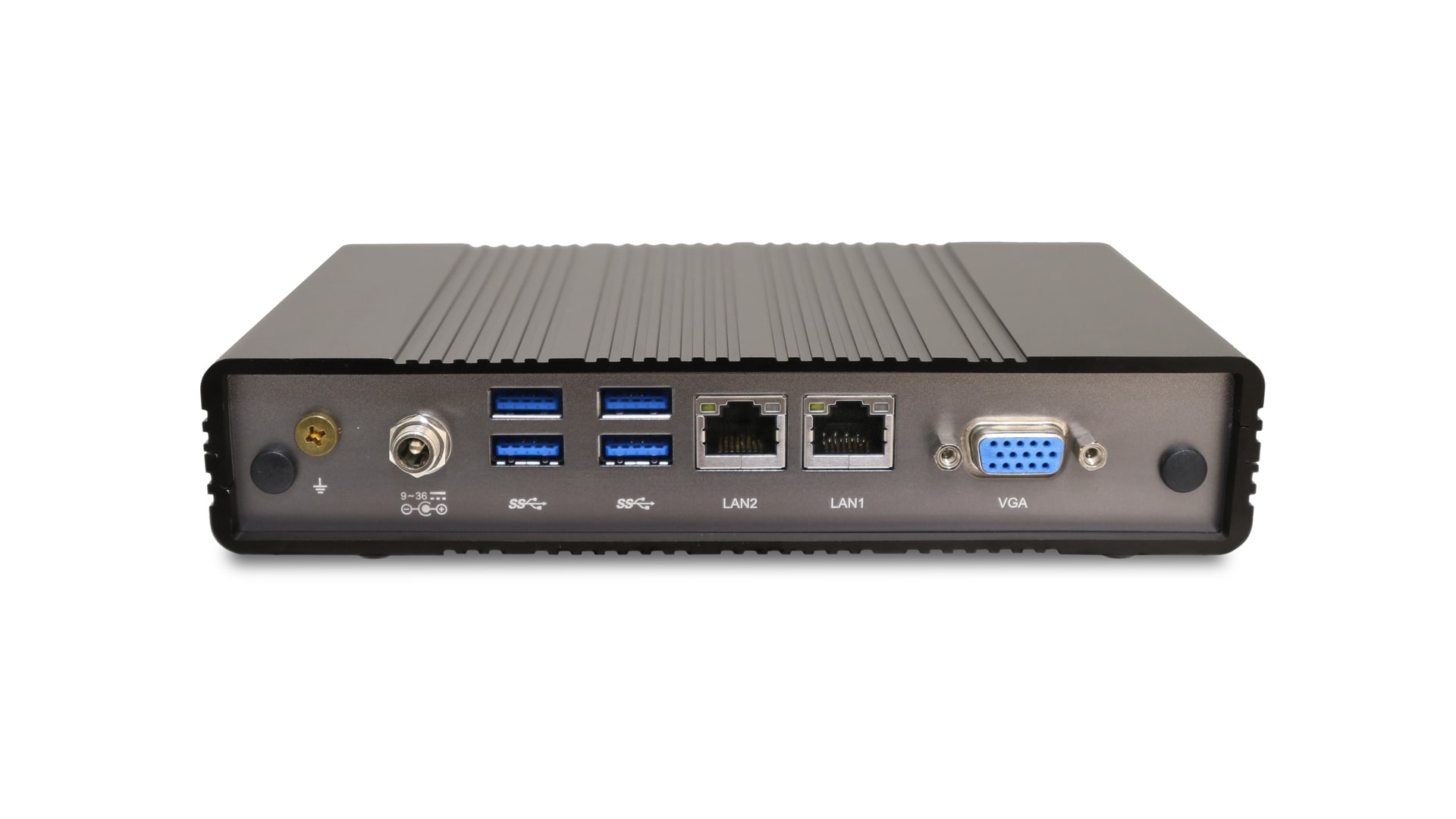

System I/O

DC Jack x 1
VGA Port x 1
DisplayPort x 1
USB2.0 x 2
USB3.0 x 4
RJ45 LAN x 2
Antenna Holes x 4
COM Port x 2
AT/ATX Switch x 1

Storage

mSATA x 1

Supports OS

Windows 10 IoT

Warranty

3 Years

IoT SW integration (AiCU)

Memory

Onboard: DDR3L, 1866 Mhz, up to 2GB
Expansion: SO-DIMM x 1

Graphics

Intel® Celeron® E3900 Series SoC
Intel® HD Graphics 500

Ethernet

Intel I211AT x 2
10/100/1000Mbps

Expansion

Mini PCIe for mSATA x 1
Mini PCIe slot x 1

Power Requirement

Power Input Voltage: DC 9 ~ 36V
Power Adaptor: AC to DC 19V/3.74A 90W

Weight

Net Weight: 1.16 kgs
Gross Weight: 1.48 kgs

Operating Temperature

E3900 series SoC SKU -40 ~ 70ºC

Storage Temperature

-40 ~ 70ºC

Relative Humidity

90% RH (70ºC non-condensing)

EMC

CE/FCC Class B

Safety Certifications

CB, UL, CCC

Energieverbruik

Typical: 20W
Max: 25W

Certificeringen

Complete certification for EMC and Safety
UL, CB, CCC, CE, FCC, RoHS

Vibratie tijdens Productiviteit

2.20G/Random
10min per axis in all 3 axes

Shock tijdens Productiviteit

Half sine, 40G, 2 ~ 3 ms duration
