DE3125 | AOPEN

DE3125 Request a Quote

The DE3125 media player with Intel® N-series quad-core Processor N100 and Intel® UHD Graphics supports 4K@60 on two HDMI2.0 displays. Higher CPU and GPU turbo frequency can deliver a better user experience.

Ultra small form factor Mini PC, intel Processor N-series with 2x HDMI2.0 output

UHD (4k) content playback

DE3125 is capable of driving 2x UHD (4k) content. With a resolution that goes up to 3840x2160 pixels, your content will be close to perfect. This feature makes the players that are capable of delivering content that is fluent and stutter-free in UHD (4k).

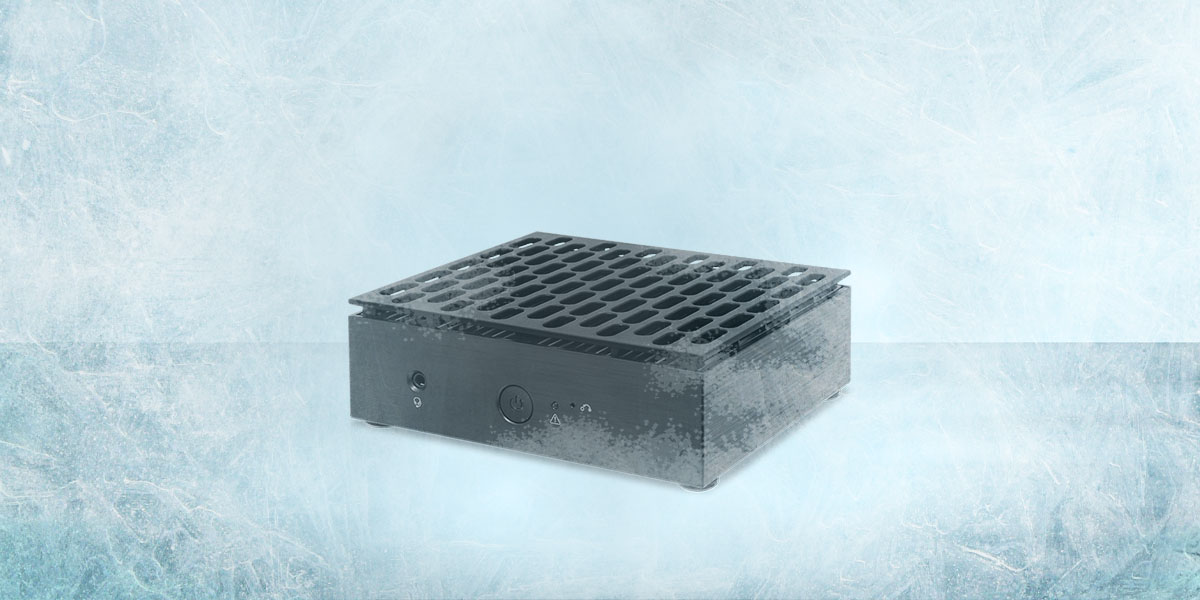

-20°C operating temperature

AOPEN has good experience in mechanism and electronic design. It has designed a good body temperature control for DE3125. The equipment can operate normally even at a low temperature of -20°C. It is suitable for industrial or outdoor applications that require low temperatures.

Fanless design

With a fanless design, the device is passively cooling and is dustproof. Therefore, it's very suitable for segments such as industry.

Small form factor

This form factor ensures easy integration into kiosks or behind screens. The AOPEN small form factor is a standard that is used for Digital Engine (DE) models. The size of DE3125 is 125x35x110 mm. The mounting hole of the bracket is just the same as the DE series.

Trusted Platform Module 2.0

The TPM is a dedicated microcontroller, designed to secure hardware through integrated cryptographic keys. This means the data on your hard drive will be encrypted to ensure your data is safe, even when your device gets stolen.

AOPEN SMART function

AOPEN SMART function provides 3 major features of System error LED & BIOS recovery & USB keyboard power ON/OFF system.

Download

Dimensions (W x H x D)

125(W) x 35(H) x 110(D) mm
4.92 x 1.38 x 4.33 inch

Volume

0.45L

Weight

0.82kgs / 1.8lbs

CPU

Socket: CPU on board
Type: Intel Alder Lake-N N100 TDP=6.5W

Chipset

AiCU

Memory

Channel : Single Channel
Type: DDR4 SO-DIMM x 1
Data rate: 3200
Max Memory: 16G

Graphics

Intel UHD Graphics

Expansion

M.2 slot x1, 2280(key M for SATA SSD)
M.2 slot x1, 2230(key E for wifi)

Audio

Type: Realtek HD Audio ALC897
Channel: Stereo

LAN

Intel 2.5GLAN x 1 (i226V)
100/1000/2500 Mbps

Storage

M.2 SSD x 1

Front Panel I/O

Power Button x 1
System error LED x 1
BIOS recovery button x 1
Combo audio jack x 1

Rear Panel I/O

DC Jack: 12/24V, 5525 x 1
HDMI 2.0 Port x 2
USB 2.0 Port x 2
USB 3.2 Port x 1
RJ45 LAN Jack x 1
Other: USB Type C x 1

CPU Thermal Module

AOPEN Fanless design

WatchDog Timer

1 ~ 255 SEC./ min

Adapter

40W (19V, 2.1A) AC Adapter
ADP-40KD BBZ
P/N: 90.DEF57.0010

Input Voltage

AC 100 ~ 240V

Warranty

3 years

MTBF

50,000hrs

Operating Temperature

0 ~35ºC (32 ~ 95ºF)

Storage Temperature

-30 ~ 60ºC (-22 ~ 140ºF)

Relative Humidity

90% RH (35ºC non-Condensing)

Support

Windows
Linux
